£4.10 Inc VAT
£3.42
Exc VAT

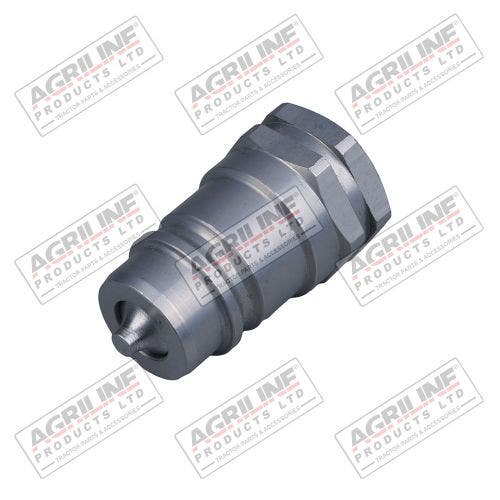

Quick Release Coupling - Male - Body Size 1/2"
Part No.
Product Details
57024
Product Details
Quick Release Coupling - Male - Body Size 1/2" - Thread Size M22 x 1.5
This series of ISO A couplings are the ideal choice where a tough, durable product of superior quality is required. They are perfectly suited to agricultural and industrial applications.
Body Size: 1/2”
Thread: M22 x 1.5
D2: 20.5mm / 0.81"
L2: 43.5mm / 1.71"
A/F: 27mm / 1.06"
APPLICATIONS
• Agricultural
• Construction
• Mobile
• General hydraulics
FEATURES
• Poppet valves have balanced springs
• Locking ball system allows quick connection
• Bidirectional flow
SPECIFICATIONS
• Operating temperatures -40°C (-40°F) to 106°C (223°F)
• Carbon steel with trivalent plating
• Fitted with NBR seals
• Conforms to ISO 7241 : 2014 A
PERFORMANCE CHARACTERISTICS
• Maximum Working Pressure (Coupled) - 320 bar (Flow in Litres Per Minute) - 4640 PSI (Flow in Gallons Per Minute)
• Burst Pressure (Coupled) - 1500 bar (Flow in Litres Per Minute) - 21750 PSI (Flow in Gallons Per Minute)
• Rated Flow - 45 bar (Flow in Litres Per Minute) – 12 PSI (Flow in Gallons Per Minute)
