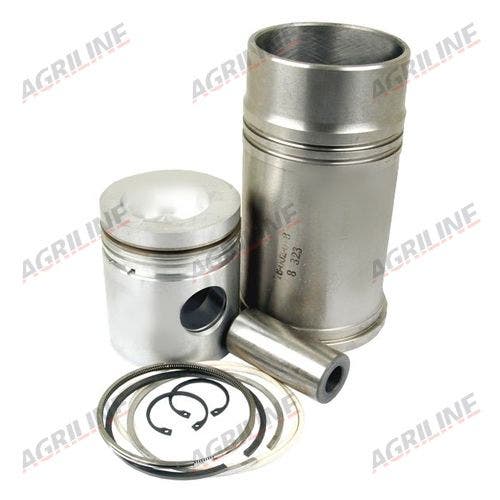

John Deere Piston, Ring & Liner Kit Models 1950, 2140, 2650, 2750, 2755, 2850, 2855, 3255, 3650, 6506, 6600
Part No.
Product Details
1446
Product Details
John Deere Piston, Ring & Liner Kit.
Liner Bore / Internal Diameter: 106.58mm.
Liner Flange Diameter: 125.92mm.
Liner Flange Width: 9.79mm.
Liner Overall Height: 196.93mm.
Liner External Diameter: 120.20mm.
Wet Liner, supplied with Sealing Rings.
Piston Crown Diameter: 104.75mm.
Piston Skirt Diameter: 106.39mm.
Piston Compression Height: 66.30mm.
Piston Overall Height: 111.97mm.
Piston Chamber Diameter: 58.42mm.
Piston Chamber Depth: 18.62mm.
Piston Gudgeon Pin Diameter: 41.27mm.
Ring Grooves: 3.
The piston ring set supplied within this kit contains three piston rings (2.97 x 2.36 x 3.45).
