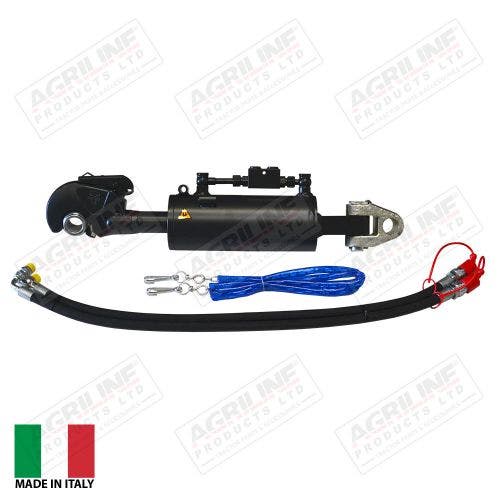

Hydraulic Top Link Kit (Cat. 3) with Knuckle/ Hook Ends Models 7010, 7020, 7200, 7210, 7220, 7320, 7400, 7410, 7420, 7425, 7465, 7475, 7480, 7485, 7490, 7495, 7505, 7510, 7515, 7520, 7525, 7600, 7610, 7620, 7700, 7710, 7720, 7800, 7810, 7820, 7920

Supplied with 900mm Length Hoses with 1/2" Fittings & Release Chain.

Suitable for Tractors up to approx. 147 HP.
Bore : 90mm.
Rod : 45mm
Stroke: 190mm.
Knuckle Hole: 32mm.
Knuckle Width: 51mm.
Ball I.D: 32.1mm.
Minimum Length: 610mm.
Maximum Length: 800mm.
Pull / Push Capacity: 8.59 / 11.45 Ton.
