Ferguson TEF20 Radiator Models 20C, FF30, TEF20

Agriline Tractor Radiator 5811 is a bestselling product suitable for the Ferguson TEF20 fitted with 20C Engine. Item replaces Massey Ferguson OEM 9617.

Supplied fitted with radiator cap and tap.

High quality copper and brass construction.

4 Row.

A radiator core is made up of tubes that carry the coolant, and fins that are placed between the tubes to increase air contact surface area to support heat dissipation. ‘Rows’ are the lines of tubes from the front face of the core to the back. 3 lines of tubes are found in a 3-row radiator

Height: 587mm + Filler Cap & Neck

Core Height: 448mm

Core Width: 381mm

Inlet Diameter: 38mm

Fixing Bolt Centre to Centre: 345mm

Replacing a leaking radiator is simple. Once you have removed the necessary panels to gain access to the radiator, it is a case of disconnecting pipe work and then removing various retaining bolts. The replacement radiator is the same size and shape as the original therefore everything simply bolts back into place and reconnects before returning the body panels.

This is much simpler, quicker and cheaper than the alternative which is to replace the leaking core. This would entail sourcing a new core, still removing the old radiator, enlisting the services a specialist to remove the leaking core and solder in the new one, before finally being able to re-install.

When fitting your new radiator, it is recommended you replace the 2 rubber mounting pads to minimise vibration which could eventually lead to cracks and other damage. For Rubber Mounting Pads, use Agriline part code 6208 – you will need 2 pieces to perfectly fit your radiator.

When installed, your radiator will need to be filled with a mixture of water and antifreeze. Generally, a 50/50 mix is suitable for more moderate climates where the temperature gets below freezing only on occasion. For 5 Litre Antifreeze, use Agriline part code A-622.

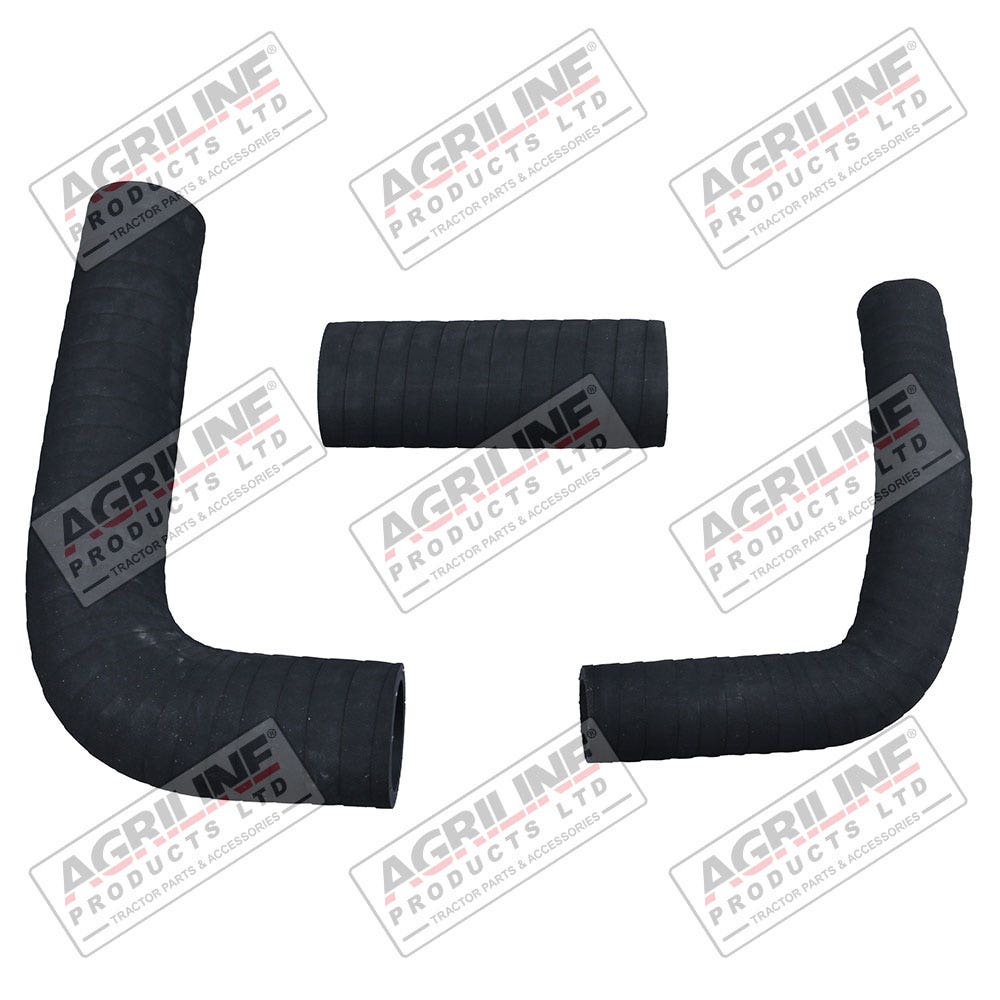

For Hose Kit, use Agriline part number 103-Kit.

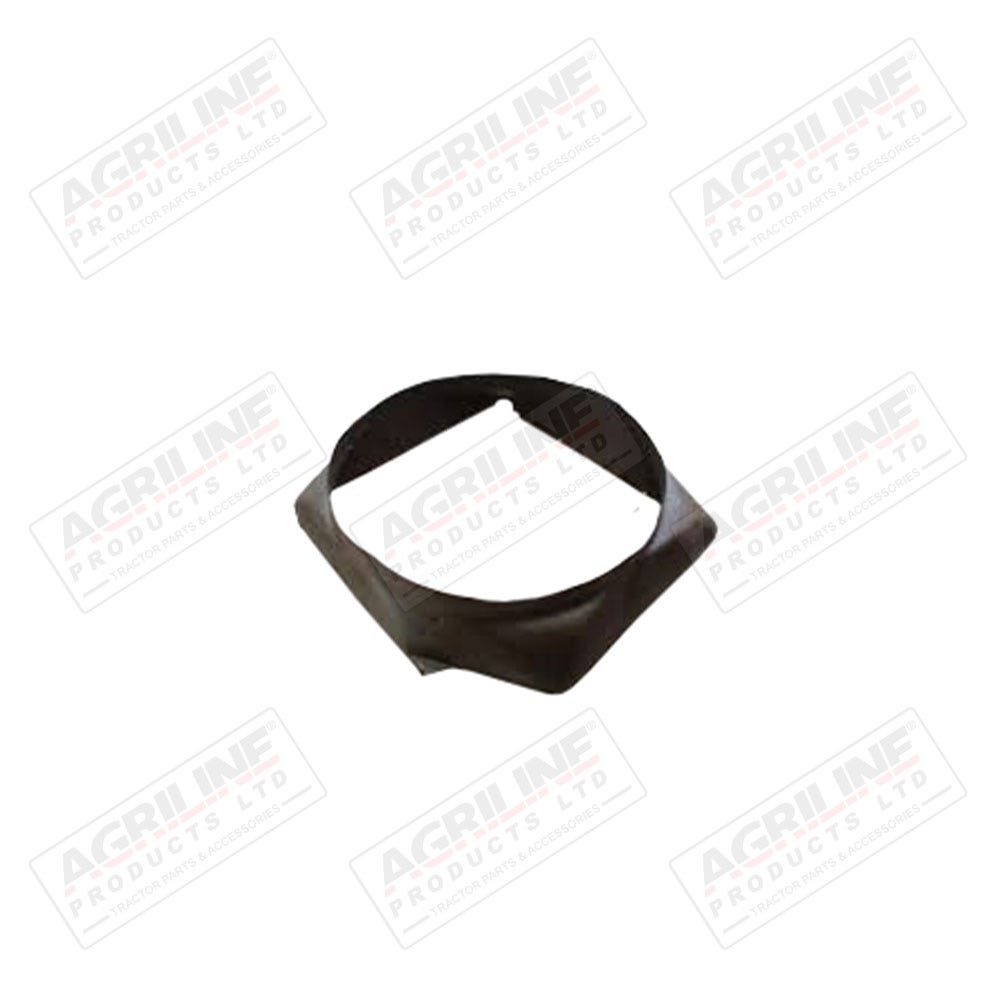

Replacement Fan Cowl, Agriline part number 6829.
