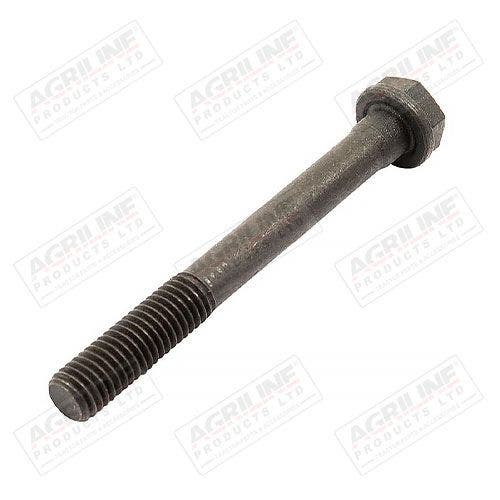

Cylinder Head Stud - 112MM Models 1040, 1140, 1350, 1550, 1630, 1640, 1750, 1840, 1850, 1950, 2040, 2040S, 2130, 2140, 2250, 2450, 2650, 2850, 3040, 3050, 3100, 3110, 3140, 3150, 3200, 3210, 3300, 3310, 3350, 3400, 3410, 3640, 3650, 5620, 5720, 5820, 6010, 6020, 6100, 6110, 6120, 6200, 6210, 6220, 6230, 6300, 6310, 6320, 6330, 6400, 6410, 6420, 6430, 6505, 6506, 6510, 6520, 6530, 6600, 6610, 6620, 6630, 6800, 6810, 6820, 6830, 6900, 6910, 6920, 6930, 7430, 7530, 840, 940, Ergos 85, Ergos 85-4, Ergos 95, Ergos 95 Hydro, Ergos 95-4, Ergos 95-4 Hydro
Part No.
Product Details
1464A
Product Details
1/2" UNC 112MM
Grade 4F.
Manufacturers recommended Torque procedure:
1. Tighten to 100Nm.
2. Tighten to 150Nm.
3. Wait 5 minutes, then re-check at 150Nm
4.Then Rotate bolt a further 60 Degrees
Grade 4F.
Manufacturers recommended Torque procedure:
1. Tighten to 100Nm.
2. Tighten to 150Nm.
3. Wait 5 minutes, then re-check at 150Nm
4.Then Rotate bolt a further 60 Degrees
