Control Box Models 2000, 2110, 2310, 2600, 3000, 3100, 3110, 3310, 3600, 4000, 4100, 4110, 5000, 5100, 5200, 7000, 7100, 7200, 8000, 8200, 8600, 9000, 9200, 9600
Part No.
Product Details
5076
Product Details

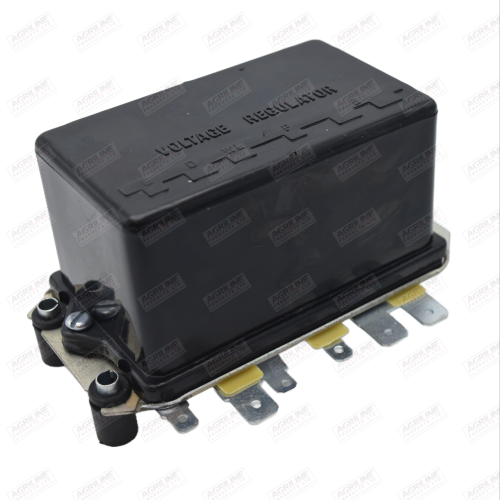

22 Amp Control Box / Voltage Regulator With 6 Terminals (3 Smaller Terminals, 3 Larger Terminals), Marked E, D, WL, F, B
12 Volt.
As Original Style With Black Plastic Casing, This Control Box Is Held In Position On The Tractor With 3 Fixings.
Installing Your New Control Box / Voltage Regulator When Using An Original Ford Wiring Harness / Loom:-
- Position E (Earth) Uses The Black Wire, & The Earth Point Is The Control Box Bracket On The Tractor.
- Position D (Dynamo) Uses The Brown & Yellow Wire With Larger Spade Terminal Fitting On The Loom / Harness.
- Position WL (Warning Light) Also Uses The Brown & Yellow Wire But With Smaller Spade Terminal Fitting On The Loom / Harness.
- Position F (Dynamo Field) Uses The Brown & Green Wire.
- Position B (Battery) Uses The Two Brown Wires, These Go Onto The Two Large Terminals On The B Position Of The Control Box.
