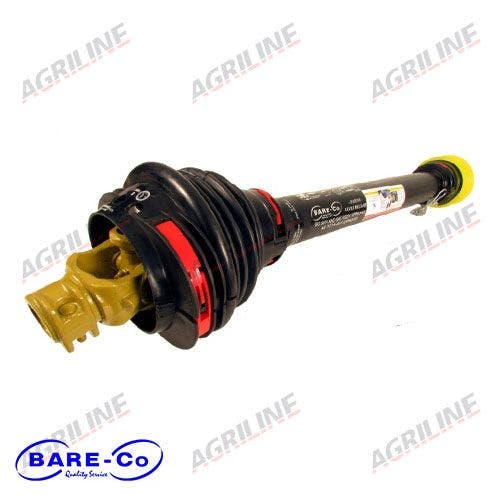

BARE-Co Wide Angle PTO Shaft
Part No.
Product Details
91014
Product Details
Overall Closed Length: 1400mm.
Power Rating @ 540 rpm: 106HP / 75kW.
Wide Angle Universal Joint Size: 32mm /36mm x 89mm / 106mm.
Tractor End Size & Fitting: 1 3/8". 6 Spline. Quick Release.
Implement End Size & Fitting: 1 3/8". 6 Spline. Clamp Bolt.
Implement End Safety Device: Shear Bolt Limiter. M12 Bolt, Grade 8.8. Torque Rating 3500Nm.
Tube Profile: Star.
The max operating angle on a wide angle UJ is 80%.
BARE-Co PTO Shafts are high quality constructed PTO shafts designed to allow for ease of maintenance, consistent reliability and safety for farmers.
Each shaft comes complete with a unique lever release PTO shaft cover, forged steel end yokes and fitted with universal joints with long life seals.
